By IKONN

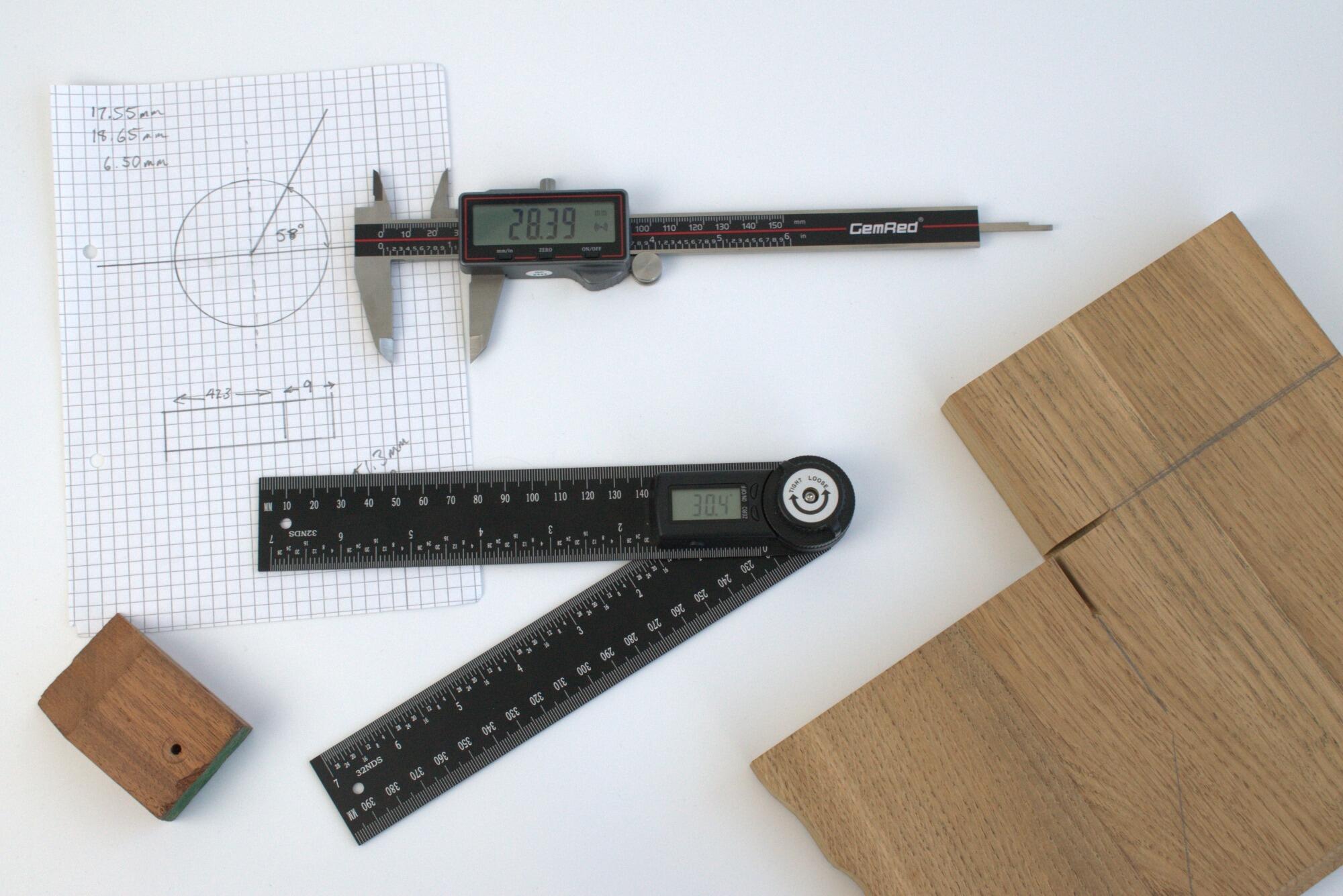

IKONN Digital Angle Measure consists of two 20 cm aluminium arms, which rotate around a hub. You can use the tool to measure any angle between 0 and 360 degrees. The Digital Angle Measure is a great addition to woodworking, home improvements and the study of geometry or trigonometry.
IKONN Digital Angle Measure consists of two 20 cm aluminium arms, which rotate around a hub. You can use the tool to measure any angle between 0 and 360 degrees. The Digital Angle Measure is a great addition to woodworking, home improvements and the study of geometry or trigonometry.
Additional benefits when pairing it with the IKONN Controller or myIKONN app.
In combination with the IKONN Controller, or myIKONN Apps visually impaired users can hear all measurements announced in their preferred language and are provided with the option of switchable degree/radian measurements.
Batteries Required: CR2032 Lithium battery (not included)
Be the first to review this product.
Battery: CR2032 Lithium battery
Dimensions: 218 x 20 x 35 mm
Weight: 89 g
How to turn on & use it:
Rotate the locking screw clockwise to tighten the device or rotate counterclockwise to loosen the arms so they can rotate.

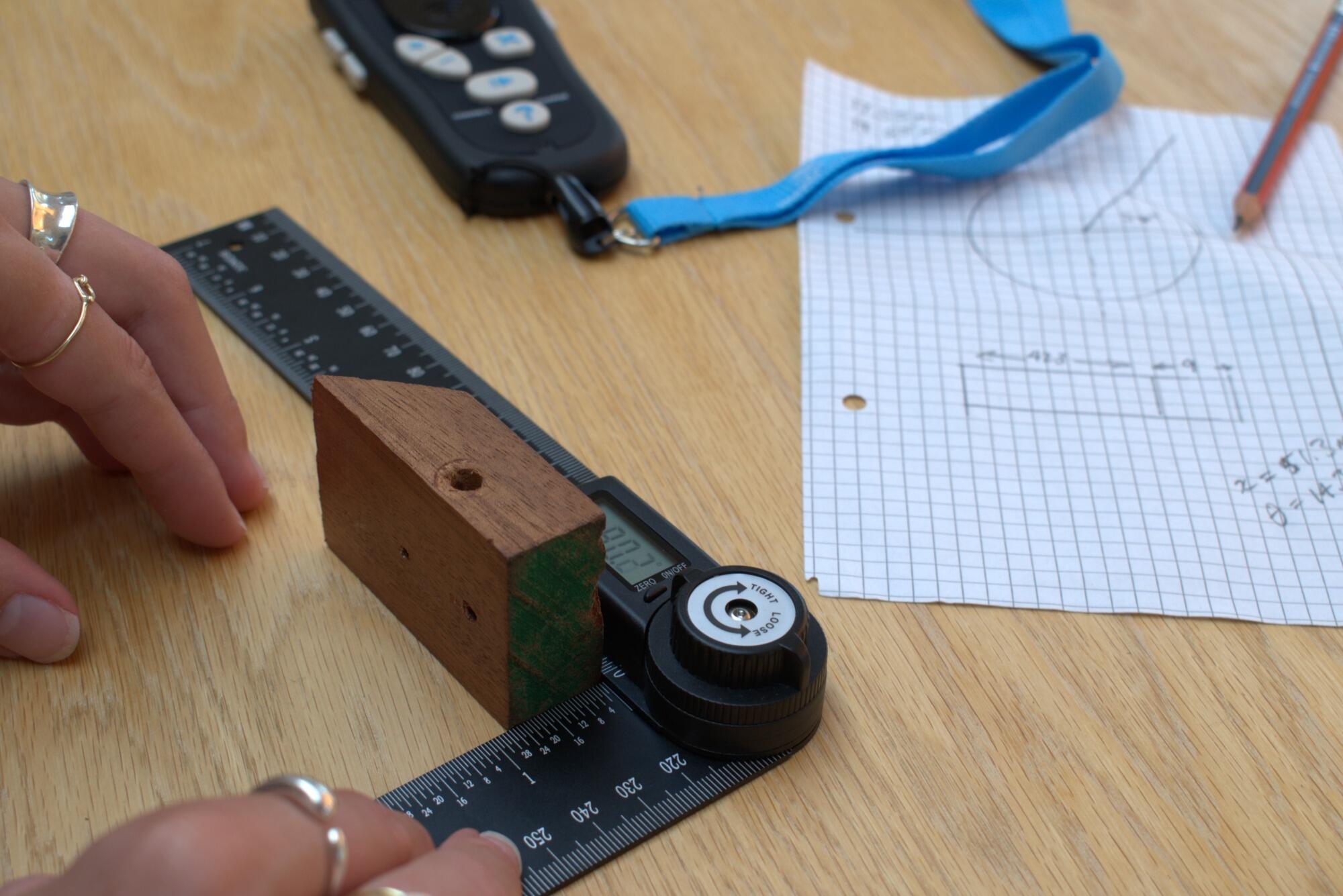

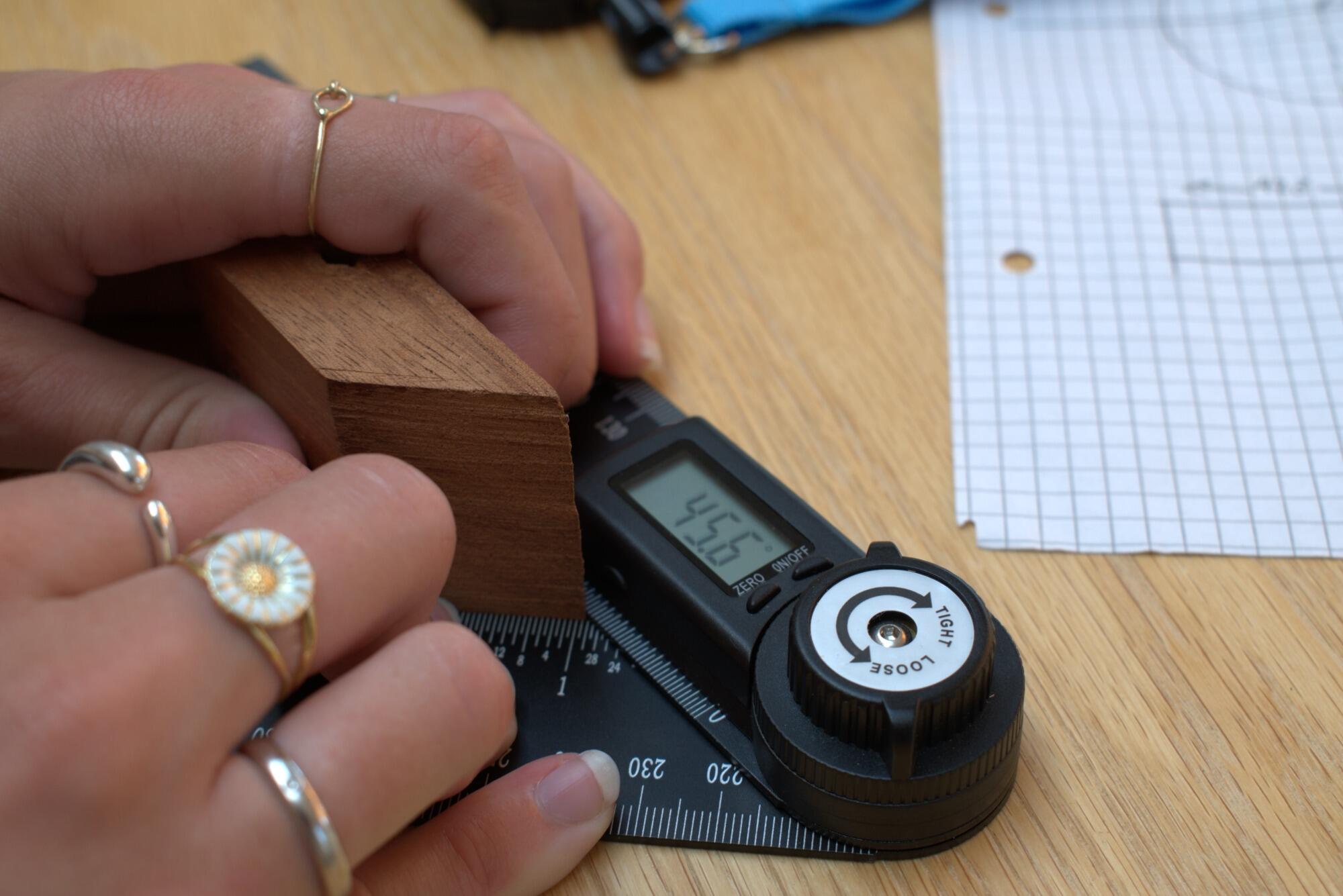

Inside corner: Fold both arms together and place the tool firmly against the surface. Press ZERO button to calibrate. Open one arm the display will show the measured internal angle.
Outside Corner: Open both arms flat and place the base of the tool firmly against the surface. Press ZERO button to calibrate. Close one arm the display will show the measured external angle. This mode also allows measuring angles from the x-axis as is typically done in mathematics.
